DESCRIPTION

Basic Info

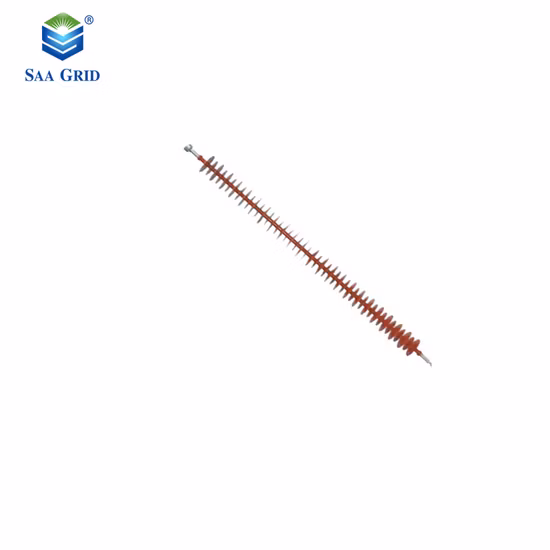

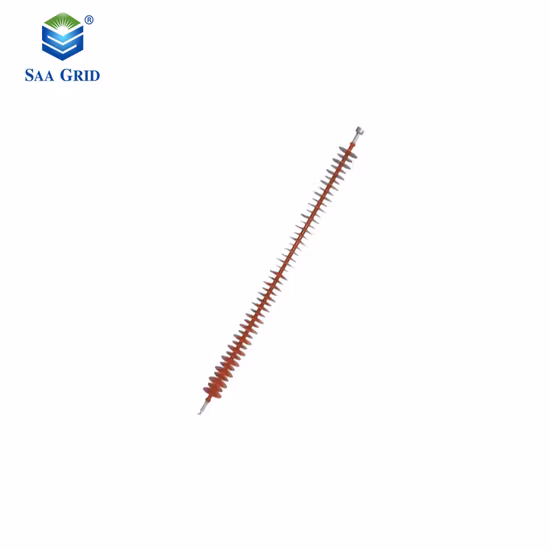

Model NO.	FXBW-254/160
Size of Bearing Capacity	160KN
Certification	CCC, CE, ISO9001
Color	Grey/Red/Customerised
Brand	SAA Grid
Rated System	254kv
Creepage Distance	7180 mm
Delivery Time	3~25 Days
Core Rod Material	Fiber Glass Core
End Fitting Material	HDG Steel
Packing	Wooden Case/Customerised
Transport Package	Carton or Plywood Case
Specification	Customers′ Requirements
Trademark	SAA
Origin	China
HS Code	8546201000
Production Capacity	1000, 000PCS/Year

Product Description

Application: Used on surge arrester, circuit breaker, capacitor, instrument transformer, power transformer, cable termination & GIS, etc.Color: Red, Brown, Gray or Customer's requirementStandard: IEC, GB, BS, ANSI, AS or Customer's requirement

Specification

RatedSystemVoltage(kV)	Type	SectionLength(mm)	ArcingDistance(mm)	CreepageDistance(mm)	CouplingSize	SpecifiedMechanicalLoad(kN)	Lightning ImpulseWithstand Voltage(kV)	Power FrequencyWithstand Voltage(kV)
								Dry	Wet
220	FXBW-220/100	2240	2220	7040	16	100	1000	440	385
220	FXBW-220/120	2240	2220	7040	16	120	1000	440	395
220	FXBW-220/160	2240	2200	7040	20	160	1000	440	395
220	FXBW-220/210	2240	2200	7040	16	120	1000	440	395
254	FXBW-254/120	2343	2100	6225	16	120	1285	435	400
254	FXBW-254/160	2415	2140	7180	20	160	1315	445	395
254	FXBW-254/210	2600	2365	7970	20	210	1450	485	440
275	FXBW-275/120	2345	2180	6441	16	120	1335	455	410
275	FXBW-275/160	2648	2486	8525	20	160	1475	475	430
275	FXBW-275/210	2935	2660	9020	20	210	1630	505	455
Order Information:1.Pollution level; 2.Voltage grade; 3.Mechanical load; 4.Insulation distance; 5.Creepage distance; 6.Section length; 7.Coupling typePs. Different design could be supplied as customer requirements

Technical Drawings

Company and Factory
Factory Equipment
Test Equipemt

FAQ

1.Do you accept OEM or ODM? Yes,we're a factory, any customized requirements we will try our best to help you realize.

2. How does your factory do regarding quality control? All the products will be 100% checked before the shipment and we have passed through the QC System.

3.CAN YOU PROVIDE SAMPLES? Yes, plesae contact us to know the sample policy.

4.Usual Payment Term. We accept terms of T/T in advance, L/C, Western Union and others. Any question, please ask us!

5. Can I visit your company or factory? Of course, you are welcome.
